406 MHz
EPIRB with Integral GPS Category I
Product No.
2742
Product No. 2742NH Non Hazardous Class 2
Battery (Approved 9/06 � Now Shipping)
Model No.:
RLB-35
truction
Manual in PDF format |
|


-
FastACQTM GPS engine acquires LAT/LON from a cold start better than normal
GPS engines
-
100 m (110 yds) GPS position accuracy, optimum allowed
by COSPAS-SARSAT
-
Floats upright with high visibility built-in
strobe
-
Transmits on 406 MHz (COSPAS-SARSAT) with your
registered, digitally-coded distress signal, and 121.5 MHz (SAR homing
frequency)
-
Automatically activated when out of bracket and in the
water or manually activated
-
Only EPIRB available that provides a GPS acquisition
test, a full functional self test of internal circuitry, and battery
voltage test
-
High-impact polycarbonate case with non-tangling
lanyard
-
Audio/visual indicators of active
transmission
-
Class 1 battery for colder temperature operation;
minimum 48 hrs @ -40oC (-40oF), 5 year replacement
-

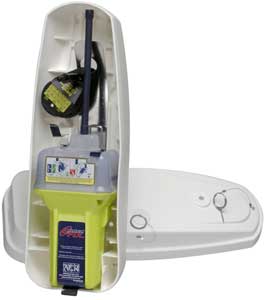

Fully enclosed, high density, UV stabilized
polyethylene bracket with hydrostatic release withstands extremely
abusive environments
|
|
| Size: |
17.5 x 4.75 x 3.5 in (44.4 x 12.1 x 8.9 cm) |
| Weight: |
2.3 lbs (1.04 kg) |
| Material: |
High impact
polycarbonate blend case/polyethylene bracket |
| Color: |
Hi-Viz
Yellow/White bracket |
| Deployment: |
Automatic,
hydrostatic release |
| Operation: |
When
submerged in water between 5-13 ft. (1.5 - 4 m), the hydrostatic release
will disengage the rod allowing the Category 1 bracket to release the
EPIRB which then begins transmitting |
| Waterproof: |
33 ft (10
m) |
| Accessories: |
9490
Hydrostatic Release kit, 1096 Battery Replacement Kit |
| Certification: |
Approved by
COSPAS-SARSAT, FCC, USCG, Complies with GMDSS, European
MED |
| U.S. Patent
Number |
U.S. Pat. No.
6,501,340 |
| Limited
Warranty: |
5
years |
| Frequency: |
406.028 MHz,
121.5 MHz |
| Battery
Type: |
Lithium -
5-year replacement life (11-year storage life) |
| Modulation: |
AM |
| Radiated
Power: |
5 watts +2dB
(406 MHz) 50 mW +3dB (121.5) |
| U.S. Patent
No. |
6,501,340
Patented proprietary electronics package provides
greater frequency stability for most accurate position through the LEOSAR
satellites FastACQ� GPS is on for up to 25 minutes in the first 45 minutes
of operation |
|
|
|
