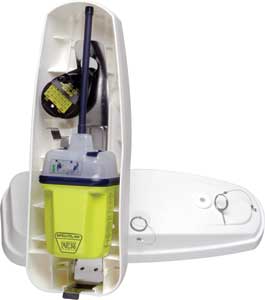

406 MHz EPIRB with Bracket
Category I
(Automatically Deployable)
Product No. 2774
Product
No. 2774NH Non Hazardous
Class 2 Battery (Approved 11/07 � Now Shipping)
Model No.: RLB-32 Cat
uct Sell Sheet |
|
- Patented proprietary
electronics package for faster, more stable 406 frequency transmission;
full functional self-test including battery voltage and internal
circuitry
- Fully enclosed, high density, UV stabilized
polyethylene bracket with hydrostatic release
- Hydrostatic release automatically
deploys EPIRB if vessel sinks to approximately 13 ft (4m); beacon
automatically activates
- World's smallest 406 MHz EPIRB that meets
all world regulations
- Built in strobe for enhanced location in
poor visibility conditions
- Single, three position switch for easy test
and operation. Steady green LED indicates has passed full functional
test, flashing red LED indicates unit is "ON"
- Transmits on 406 MHz (COSPAS-SARSAT) with
your registered, digitally-coded distress signal, and 121.5 MHz (SAR
homing frequency)
- Can be manually activated; self-buoyant - no
external float collar to lose
- Lanyard coiled on recessed spool for
non-tangling deployment
- Exclusive, polycarbonate blend designed for
maximum resistance to UV and chemicals; maximum durability when exposed
to extreme temperatures and shock
- High impact plastic case designed to
withstand exposure to UV rays, oil, sea water and raft packing
- Field programmable - built-in vessel code
can be reprogrammed by any ACR Authorized Service Center world wide
(Maritime/Serialized/Radio Call Sign/MID Protocols, Country Code,
etc.)
- Product label includes universal
test/operation symbols, English and French languages, plus ability to
substitute other foreign languages
- 5 year limited warranty
- 5 year replacement life (11 year useful
life) lithium battery
- Operating life: 48 hours @ -40�C
(-40�F)
|
|
| Size: |
17.5 x
6.25 x 5.5 in (44.5 x 15.8 x 14 cm) |
| Weight: |
4.5 lbs
(2kg) |
| Material: |
High impact polycarbonate
blend case/Polyethelene bracket |
| Color: |
High-viz optic
yellow |
| Deployment: |
Automatic, hydrostatic
release |
| Operation: |
When submerged in water
between 5-13 ft. (1.5 - 4 m), the hydrostatic release will disengage the
rod allowing the Category 1 bracket to release the EPIRB which then begins
transmitting |
| Waterproof: |
33 ft (10 m) |
| Accessories: |
9490 hydrostatic release
kit ; 1096 Battery replacement kit (available to BRCs
only) |
| Certification: |
Complies with GMDSS,
approved by COSPAS-SARSAT, FCC, USCG and DOT (UK), CE, European MED and
other international approvals |
| Limited
Warranty: |
5 years |
| Carton
Dimensions: |
18.0 x 7.0 x 6.0 in (45.7
x 17.8 x 15.0 cm) |
| Units
Per Carton: |
1 |
| Carton
Weight: |
5 lbs (2.3
kg) |
| Frequency: |
406 MHz, 121.5
MHz |
| Battery
Type: |
Lithium 5 year
replacement life (11 year useful life) |
| Modulation: |
AM |
| Radiated
Power: |
5 watts � 2dB (406 MHz)
50 mW � 3dB (121.5 MHZ) |
| Operational Life: |
48 hours @ -40�C
(-40�F) |
|
 |
|
